Features

• ENGINE LINEUP: Choose between the 6000 or 8000 C-TEC2™ engine families to power your ZR Limited — both designed and Built by Arctic Cat in St. Cloud, Minn. Choose from two powerful, capable engine families for your ZR Limited. The 8000-Series C-TEC2 delivers the next level of ultra-clean, ultra-responsive Arctic Cat 2-stroke engine performance with enhanced 165-hp class power and precision oil. Designed by Arctic Cat and built in St. Cloud, Minn, this 794cc C-TEC2 twin also features cylinders, pistons, combustion chamber, flywheel, and fuel rail, plus a fuel calibration strategy and Arctic Power Valve system with 3-stage control of the auxiliary exhaust ports via side valves. Or opt for the 6000-Series 599cc C-TEC2 Engine with Dual-Stage Injection (DSI) – the first clean technology Arctic Cat 2-stroke engine and the leader in 125-hp class performance. Both engines feature: ECM-controlled electronic oil pump: Batteryless EFI: Exhaust Pop Temperature Sensor (EPTS): Knock Sensor: Engine Reverse Technology: An exceedingly robust, lightweight design.

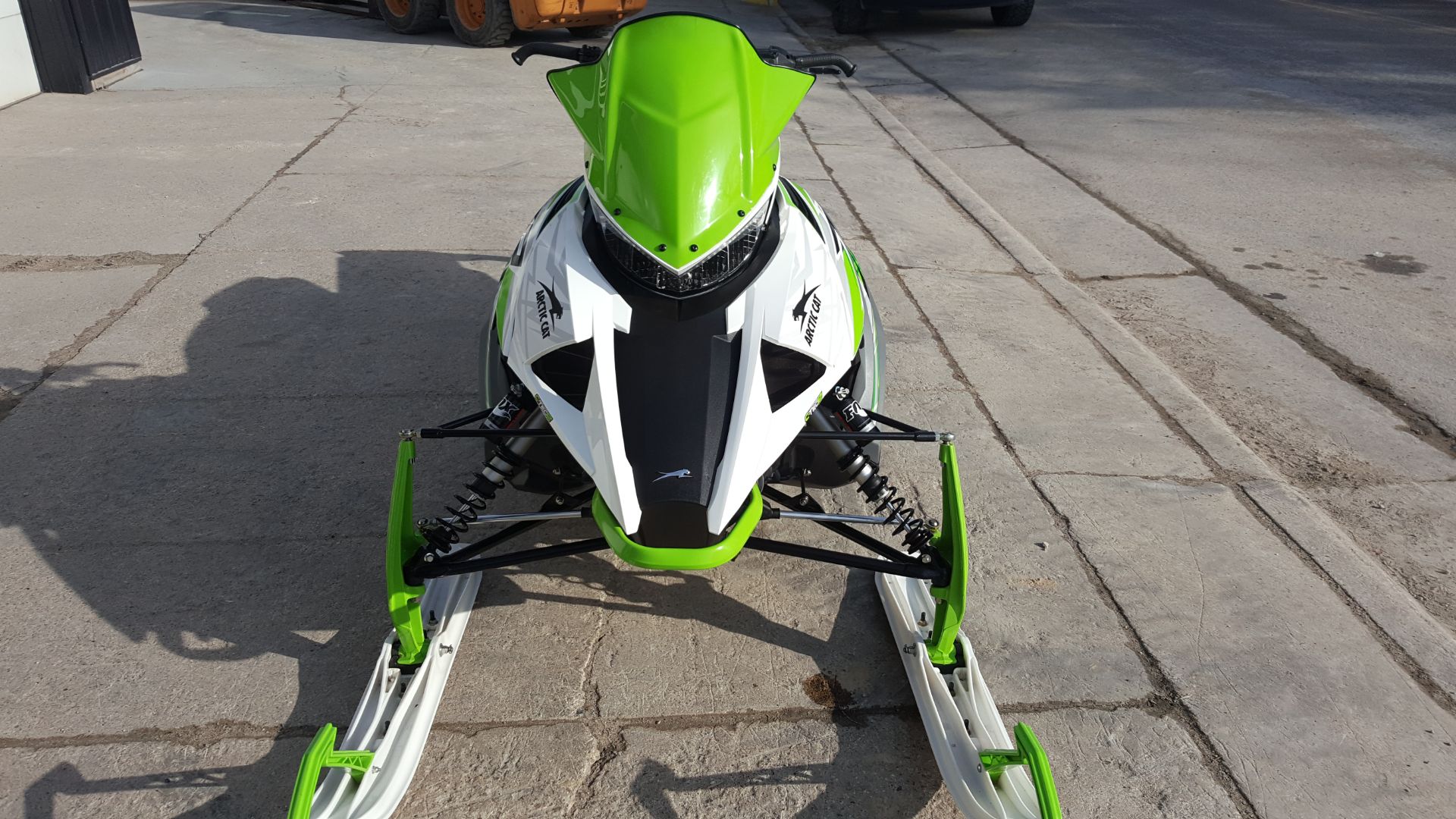

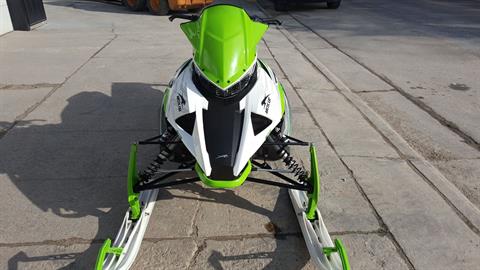

• ARS™ II FRONT SUSPENSION: Designed to deliver the increased cornering bite and ground clearance you need for confidence-inspiring handling. The next level of Arctic Race Suspension (ARS) is here. ARS II gives you better bite on corners and increased ground clearance to deliver more confidence on- or off-trail. We made the forged aluminum spindles 1.5 inches taller from the ski to the lower arm, and gave it more rigid upper A-Arms. Plus, a revised geometry delivers a roll-center and adjustable cambers, and a swaybar makes for flatter, more predictable cornering on hard pack trails.
• 137" SLIDE-ACTION REAR SUSPENSION™: Get the most out of a coupled suspension, with a unique, industry-exclusive design that keeps the front arm engaged while the rear arm compresses. Unlock the true potential of a coupled suspension with our unique SLIDE-ACTION design. The front arm fits into a U-shaped slot that allows 0.5 inches of sliding movement, so the front arm won’t collapse whenever the rear arm compresses. That unique design gives you the full benefit of coupling: controlled ski lift during acceleration and the complete use of the front arm at all times. SLIDE-ACTION suspension also allows a lower and more consistent track tension with its Torque-Sensing Link, plus three-position rear coupling block adjustability, adjustable spring preload and a durable 3-wheel rear axle assembly.
• PUSH-BUTTON ELECTRIC START: Get the convenience and ease of electric start with a handlebar-mounted button.
• GOGGLE HOLDER: Mounted right in the dash for quick access, this integrated goggle holder keeps a key piece of gear safe and sound.
• LED HEADLIGHT: When the high beam is activated, the low beam also stays on to deliver an LED light pattern with great range and width.
• 11" MID-HEIGHT WINDSHIELD: Added protection from the wind lets you enjoy more of the ride.
• ADJUSTABLE 42"-43" SKI STANCE: Easily adjust your ski stance — From 42- to 43-inches wide.
